Camber Kit Honda Civic Acura Integra

Camber Alignment Kits - Camber Kits

Revo Technica Complete Camber Kits - are designed for optimum tire wear. Camber Kit  set up includes detail instructions and all necessary hardware. Revo Technica uses a few different types of designs which are dedicated for individual vehicle types for guaranteed perfect installation every time. Applications available for Honda Civic, Honda Accord, Acura Integra as well as Mitsubishi, Nissan, Toyota, Mazda, Subaru, Volkswagen, Chevy, Dodge, Hyundai, Lexus, Ford, Infiniti, and more. See below for applications.

Camber Kit Honda Civic Acura Integra

Stage 2

Type - Stage 2 Control Arm
Constructed from reinforce hardened steel. This control arm allow a maximum of -4 to +4 camber adjustment without sacrificing OEM performance. Available for most Honda Civic and Acura Integra.

Click here for front installation instructions

NEW! Revo Technica Stage 2 Front Camber Arm for Civic/CRX 88-91 & Integra 90-93. Click here for details.

Type - Stage 2 Rear Upper Arm
Constructed from the reinforce hardened steel as the Stage 2 Control Arm with the flexibility from -2 to +3 camber adjustment. Easy adjustability with basic hand tools. Available for most Honda Civic and Acura Integra.

Click here for rear installation instructions



Camber Alignment Kits - Stage 2

Model Year Front
(Type)
Max
Degrees
Rear
(Type)
Max
Degrees
Product ID
Acura
Integra 90-93 Control Arm 0 to +3 Pls Refer to CC63.8800R - CC60.9093F
Integra 90-93 Pls Refer to CC60.9093F - Rear Upper Arm -2 to +3 CC63.8800R
Integra 94-01 Control Arm -4 to +4 Pls Refer to CC63.8800R - CC60.9295F
Integra 94-01 Pls Refer to CC60.9295F - Rear Upper Arm -2 to +3 CC63.8800R

Model Year Front
(Type)
Max
Degrees
Rear
(Type)
Max
Degrees
Product ID
Honda
Civic/CRX 88-91 Control Arm 0 to +3 Pls Refer to CC63.8800R - CC60.8891F
Civic/CRX 88-91 Pls Refer to CC60.8891F - Rear Upper Arm -2 to +3 CC63.8800R
Civic 92-95 Control Arm -4 to +4 Pls Refer to CC63.8800R - CC60.9295F
Civic/CRX 92-95 Pls Refer to CC60.9295F - Rear Upper Arm -2 to +3 CC63.8800R
Civic 96-00 Control Arm -4 to +4 Pls Refer to CC63.8800R - CC60.9600F
Civic 96-00 Pls Refer to CC60.9600F - Rear Upper Arm -2 to +3 CC63.8800R

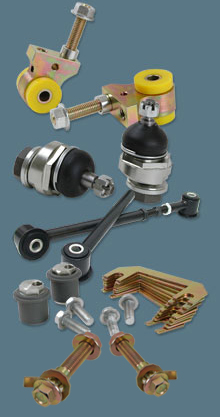

Camber Kit Honda Acura Nissan Mitsubishi & more



Type - Pivot Mount
Pivot mounts relocate the upper control arms further outboard. This moves the top of the tire out for additional positive camber. Polyurethane bushings improve cornering and drag launch. Complete kit includes silicone grease, thread locking compound and all necessary hardware.

Type - Ball Joint
Adjustable upper ball joints feature offset mounting studs. Both positive or negative adjustments could be conveniently done by rotating the ball joints.

Type - Mega Arm
Revo's Mega Arm allows maximum adjustability while retaining the factory performance under heavy load. Constructed from high tempered steel and treated with an anti-corrosive coating. Revo's design evolves around ease of installment and adjustability.

Type - Offset Bushing
Polyurethane bushings and offset steel inserts replace the rubber upper control arm bushings. Camber adjustment could be achieved by rotating the steel inserts which moves the control arms.

Type Cam Bolt
Revo's Mega Cam utilizes factory specifications for their design with an added adjustable cam lobe to accurately correct the camber settings on a lowered vehicle. Also constructed from high tempered steel for added strength and precisely machined for perfect fitment.

Camber Alignment Kits

Model
Year
Front
(Type)
Max
Degrees
Rear
(Type)
Max
Degrees
Product ID
Acura






RSX
(vin#2C003184 & After)
02&up
Cam Bolt
2.00
Rear Camber Adjuster
-2.00 to +3
CC70.4088
RSX
(vin#2C003184 & Before)
02&up
Cam Bolt
2.00
Rear Camber Adjuster
-2.00 to +3.00
CC70.2088
Integra
90-93
Pivot Mount
1.75
Shim
1.75
CC63.1002
Integra
94 & up
Pivot Mount
1.75
Shim
1.75
CC63.1003
RL 3.5

96-04

Ball Joint
1.25
N/A
Pls Refer to CC60.2002R
CC60.1001

RL 3.5

03-06

Pls Refer to CC60.1001

-

Rear Camber Adjuster

-1.50 to +3.00

CC60.2002R
CL 2.2
96-98
Pivot Mount
1.75
Shim
1.75
CC63.1011
CL 2.3
98-99
Ball Joint
1.25
Shim
1.75
CC61.2160
CL 3.0
96-99
Ball Joint
1.25
Shim
1.75
CC61.2160
CL 3.2
2001-2004
Ball Joint
1.25
Pls Refer to CC60.2002R

-

CC60.1001
CL 3.2
2001-2004
Pls Refer to CC60.1001

-

Adjust-able Camber Link
-1.50 to +3.00
CC60.2002R
Legend
91-95
Ball Joint
1.25
Shim
3
CC62.1004
TL 2.5
95-98
Ball Joint
1.25
Shim
1.75
CC61.2160
TL 3.2
95-98
Ball Joint
1.25
Pls Refer to CC60.2002R

-

CC61.1001
TL 3.2
95-98
Pls Refer to CC61.1001

-

Adjust-able Camber Link
-1.50 to +3.00
CC60.2002R
TL 3.2
99-04
Ball Joint
1.25
Pls Refer to CC60.2002R

-

CC60.1001
TL 3.2
99-06
Pls Refer to CC60.1001

-

Adjust-able Camber Link
-1.50 to +3.00
CC60.2002R
TSX
04 & Up
 Ball Joint
1.25
Pls Refer to CC60.2003R

-

CC61.1001
TSX
04 & Up
Pls Refer to CC61.1001

-

Adjust-able Camber Link
-1.50 to +3.00
CC60.2003R
MD-X
01-04
Cam Bolt
2.00
N/A

-

CC10.4000







Model
Year
Front
(Type)
Max
Degrees
Rear
(Type)
Max
Degrees
Product ID
Chevrolet






Camero
82-92
Cam Bolt
2.00
N/A

-

CC10.1040
Cavalier
82-94
Cam Bolt
2.00
Shim
1.75
CC10.1048
Cavalier
95-02
Cam Bolt
2.00
Shim
1.75
CC10.1028
Impala
99-02
Cam Bolt
2.00
Shim
1.75
CC10.1022
Metro
98-01
Cam Bolt
2.00
N/A

-

CC10.1000
Prizm
98-02
Cam Bolt
2.00
Cam Bolt
2.00

-

Malibu
97-02
Cam Bolt
2.00
Cam Bolt
2.00

-








Model
Year
Front
(Type)
Max
Degrees
Rear
(Type)
Max
Degrees
Product ID
Dodge






Neon
95-02
Cam Bolt
2.00
Cam Bolt
2.00

-








Model
Year
Front
(Type)
Max
Degrees
Rear
(Type)
Max
Degrees
Product ID
Eagle






Talon -FWD
95-99
Offset Bushing
0.75
Shim
1.50
CC65.1001
Talon -4WD
95-99
Offset Bushing
0.75
Shim
1.50
CC65.1001







Model
Year
Front
(Type)
Max
Degrees
Rear
(Type)
Max
Degrees
Product ID
Ford






Mustang
79-93
Cam Bolt
2.00
N/A

-

CC10.4000
Probe
89-92/93-97
Cam Bolt
2.00
Cam Bolt
2.00
CC10.1010
Thunderbird
80-88
Cam Bolt
2.00
N/A

-

CC10.4000
ZX2
00-01
Cam Bolt
2.00
Cam Bolt
2.00
CC10.1010
Escort
91-04
Cam Bolt
2.00
Cam Bolt
2.00
CC10.1010
Escort
81-85
N/A

-

Cam Bolt
2.00
CC10.0010
Escort
86-90
N/A

-

Cam Bolt
2.00
CC10.0010
EXP
82-85
N/A

-

Cam Bolt
2.00
CC10.0010
EXP
86-88
N/A

-

Cam Bolt
2.00
CC10.0010
Fairmont
78-83
Cam Bolt
2.00
N/A

-

CC10.4000
Festiva
87-93
Cam Bolt
2.00
N/A

-

CC10.1000
Fiesta
78-80
Cam Bolt
2.00
N/A

-

CC10.1000
Tempo
86-94
N/A

-

Cam Bolt
2.00
CC10.0010







Model
Year
Front
(Type)
Max
Degrees
Rear
(Type)
Max
Degrees
Product ID
Honda






Accord
90-97
Pivot Mount
1.75
Shim
1.75
CC63.1011
Accord
98-02
Ball Joint
1.25
Pls refer to CC60.2002R

-

CC60.1001
Accord
98-02
Pls refer to CC60.1001

-

Adjust-able Camber Link
-1.50 to +3.00
CC60.2002R
Accord
03-04
Ball Joint
1.25
Pls refer to CC60.2003R

-

CC60.1001
Accord
03-04
Pls refer to CC60.1001

-

Adjust-able Camber Link
-1.50 to +3.00
CC60.2003R
Civic/CRX
88-91
Pivot Mount
1.75
Shim
1.75
CC63.1002
Civic
92-95
Pivot Mount
1.75
Shim
1.75
CC63.1003
Civic
96-00
Ball Joint
1.25
Shim
1.75
CC62.1001
Civic (Except Si)
01-02

Cam Bolt

2.00
Rear Camber Adjuster
-4.00 to +7.00
CC70.2088
Civic Si
01-04
Cam Bolt
1.5-3.0
Rear Camber Adjuster
-4.00 to +7.00
CC70.4088
Prelude
92-96
Pivot Mount
1.75
Pls refer to CC61.1001

-

CC63.1022
Prelude
92-96
Pls refer to CC63.1022

-

Ball Joint
1.25
CC61.1001
Prelude except SH
97-01
Ball Joint
1.25
Pls refer to CC60.1001

-

CC60.1001
Prelude except SH
97-01
Pls refer to CC60.1001

-

Ball Joint
1.25
CC61.1001
Prelude SH
97-01
Ball Joint
1.25
Pls refer to CC61.1001

-

CC61.1001
Prelude SH
97-01
Pls refer to CC61.1001

-

Ball Joint
1.25
CC61.1001
Insight
01-04
Cam Bolt
0-1.5
Non-Adjustable
N/A
CC10.2000
Odyssey
99-04
Cam Bolt
0-1.5
Non-Adjustable
N/A
CC10.4000
Pilot
03-04
Cam Bolt
0-1.5
Non-Adjustable
N/A
CC10.4000







Model
Year
Front
(Type)
Max
Degrees
Rear
(Type)
Max
Degrees
Product ID
Hyundai






Tiburon
97-02
Cam Bolt
2.00
N/A

-

CC10.1000
Elantra
92-00
Cam Bolt
2.00
